| مكان المنشأ: | الصين | اسم العلامة التجارية: | TOPSKY |
|---|
|
معلومات تفصيلية |
|||
| شاشة: | 12 بوصة شاشة LCD عالية الإضاءة | أقفال كسر: | 15 |
|---|---|---|---|
| الوزن البعيد: | 1.4 كجم | الرطوبة النسبية: | 0 إلى 95٪ |
| قابلية النقل: | مصممة لسهولة النقل والنشر السريع | درجة حرارة التخزين: | -45 درجة مئوية ~ 65 درجة مئوية؛ |
| حجم جهاز السمع: | 210*100*100ملم | حمل الوزن: | <30 كجم |
| عرض: | 0.4 م | وزن المحرك الرئيسي: | 28 كجم |
| معدل تدفق الغاز: | 1.0L أو تعيين وفقًا لاحتياجات العملاء | الغطاء الخارجي: | قماش مقاوم للحريق قابل للغسل |
| مسافة التحكم اللاسلكية: | 500 م | مقاومة الدائرة: | 14.7Ω |
| قطر التوجيه: | ≤2400 مم | ||
| إبراز: | Remote Control Fire-fighting Demolition Robot,Multi-functional Demolition Tool Extinguishing Robot,High Power Diesel Engine Rescue Robot,Multi-functional Demolition Tool Extinguishing Robot,High Power Diesel Engine Rescue Robot |
||
منتوج وصف

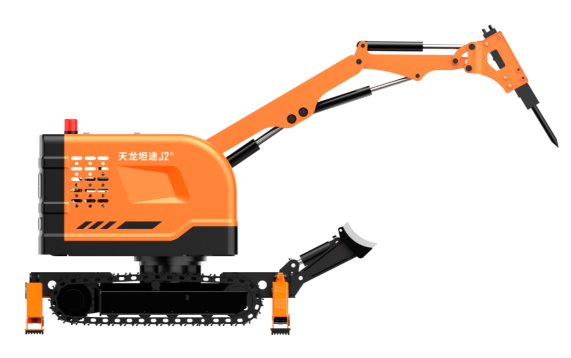

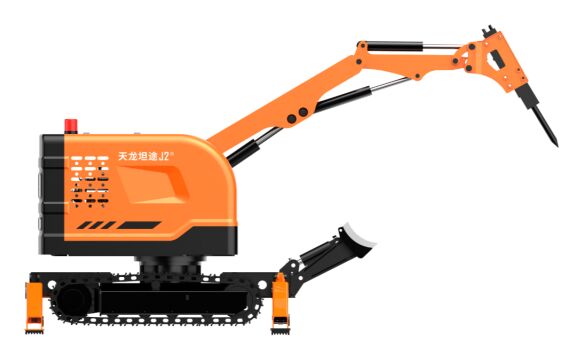

This specialized robot replaces human operators in high-risk rescue environments including toxic contamination zones, structural collapse hazards, and high-radiation areas. The system enables remote-controlled demolition operations, concrete drilling and cutting, tunnel excavation, emergency response, furnace and kiln maintenance, and nuclear facility decommissioning while eliminating personnel exposure to danger.
| Parameter | Specification |
|---|---|
| Model | RXR-JM200D |
| Basic Functions | Multi-functional demolition tool head with cutting, expanding, squeezing, and crushing modes |
| Chassis Structure | ATV hydraulic tracked chassis |
| Power System | Four-stroke diesel engine (27kw) + hydraulic pump system |
| Dimensions | 3100mm (L) × 880mm (W) × 1850mm (H) |
| Travel Width/Height | ≤ 880mm / ≤ 1850mm (including water cannon system) |
| Weight | Approximately 1600kg (including crushing hammer) |
| Traction Force | ≥ 10000N |
| Tipping Force | ≥ 10000N |
| Maximum Speed | 0 - 3km/h, remote control with stepless speed variation |
| Climbing Ability | 58% (30°) |
| Remote Control Distance | 150m |
| Working Radius | 4.5m |
| Fuel Tank Capacity | 50L |
| Ground Clearance | 160mm |
| Obstacle Clearance | 200mm |
| Continuous Operation | 8 hours |
| Rescue Capability | Tipping tool for obstacle clearance; towing ring for transporting supplies and towing rescue vehicles |
