Lightweight Explosive Disposal Robot with 10KG Grab & 500m Range

مكان المنشأ: الصين اسم العلامة التجارية: topsky

معلومات تفصيلية

نطاق القياس: 0-550 مجم / 100 مل تسخير: 1200mm × 80mm
وضع الكشف: تلقائيا سعة زجاجية مكسورة: ≤12mm مزاج الزجاج
قطر التمهيدي: 38mm اسم آخر: ثياب العزلة الطبية من النوع الساحر
زاوية: 120 درجة مناور أقصى جائزة: 10 كجم
حياة: 100 إطلاق نار طريقة التحكم: بطارية تعمل
مستوى الحماية: NIJ المستوى IIIA وزن المحرك الرئيسي: 28 كجم
مصدر طاقة النظام: AC220V/80W قوة الضوء الأرجواني: 700 ميجاوات
التعديل العمودي: 0-30 سم
إبراز:

lightweight explosive disposal robot,10kg grab bomb disposal robot,500m range counter terrorism robot

,

10kg grab bomb disposal robot

,

500m range counter terrorism robot

منتوج وصف

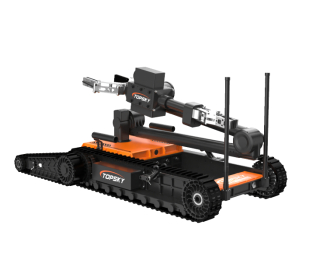

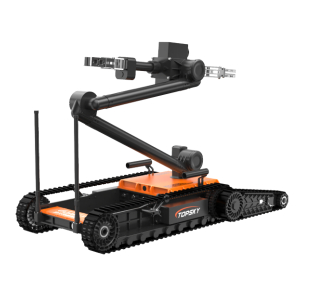

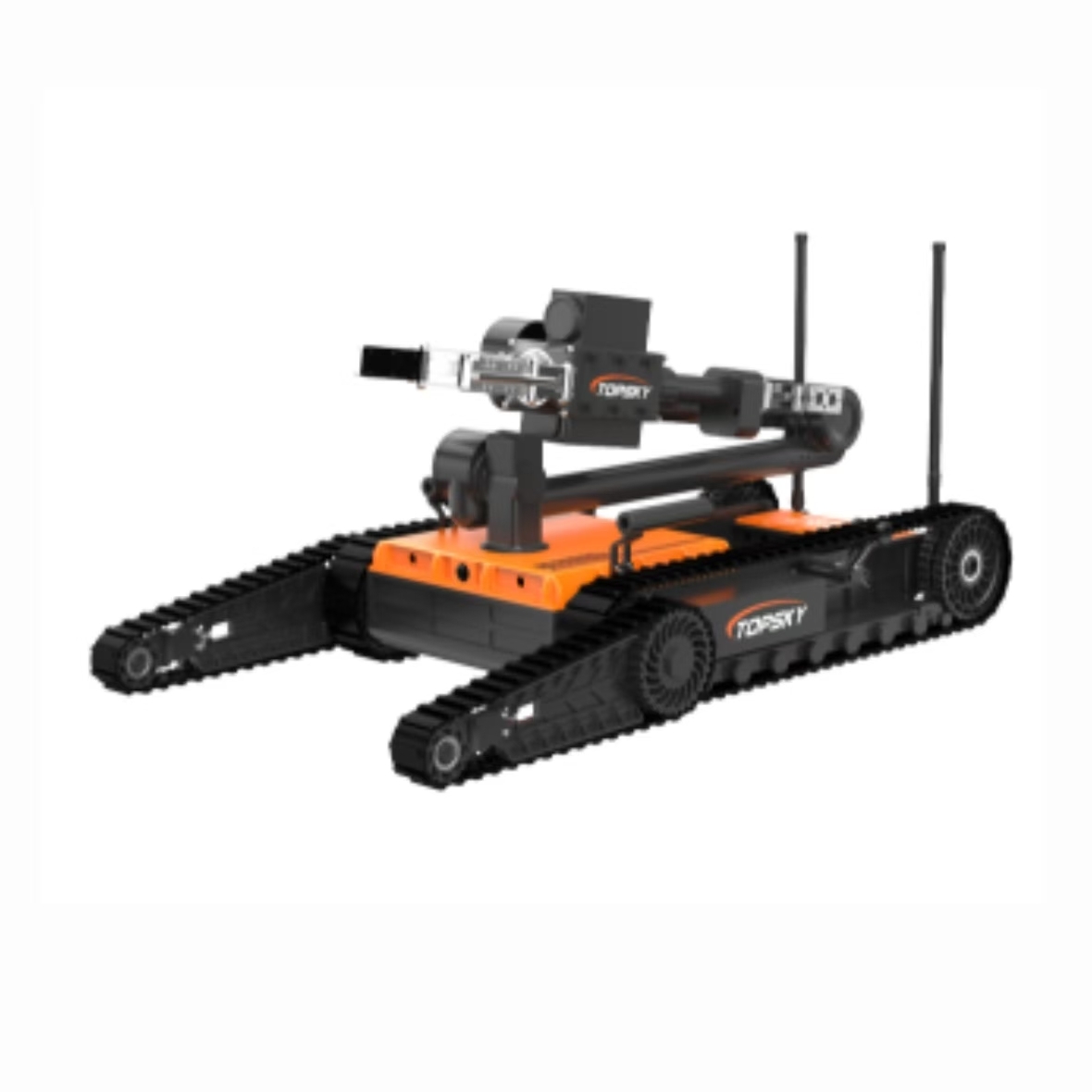

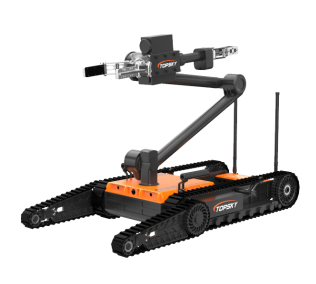

Lightweight Explosive Ordnance Disposal Robot
Overview
Designed for explosive handling and reconnaissance in inaccessible terrain, this EOD robot features a 7-degree-of-freedom robotic arm capable of rotating at various angles. The arm can lift up to 16kg at the proximal end and 3kg at the gripper, and can be equipped with explosive destruction devices for on-site neutralization.
Key Features
  • Advanced Robotic Arm: 7 degrees of freedom with 15 preset shortcut functions and one-click reset
  • Superior Mobility: Climbs 45° slopes, 43° stairs, overcomes 30cm obstacles, and crosses 40cm trenches
  • Enhanced Vision System: 4 HD cameras plus 1 pan-tilt-zoom camera with 1km communication range
  • Modular Design: Robotic arm, battery, and control box components for easy maintenance
  • Dual Control: Wired operation capability for environments with network interference
Technical Specifications
Model ER3 Generation 9
Dimensions ≤ 830mm (L) × 600mm (W) × 450mm (H) in transport state
Weight ≤ 37kg
Power Lithium Polymer Battery
Max Speed ≥ 1.8m/s with variable speed control
Operation Time ≥ 4 hours continuous
Control Range ≥ 500m wireless (visual)
Protection Rating IP65 (whole machine)
Compliance GA/T 142-1996 Police Industry Standard
Performance Capabilities
  • Slope climbing: ≥ 45°
  • Stair climbing: ≥ 43°
  • Obstacle clearance: ≥ 300mm
  • Trench crossing: ≥ 400mm
  • Water fording: 200mm depth
  • Braking distance: ≤ 0.1m
  • Straight running deviation: ≤ 3%
