ETM-1.0 Explosive Disposal Mechanical Hand 4.5m Arm 20KG Clamping
ETM-1.0 Explosive Disposal Mechanical Hand 4.5m Arm 20KG Clamping ETM-1.0 Explosive Disposal Mechanical Hand 4.5m Arm 20KG Clamping ETM-1.0 Explosive Disposal Mechanical Hand 4.5m Arm 20KG Clamping ETM-1.0 Explosive Disposal Mechanical Hand 4.5m Arm 20KG Clamping
ﺎﺘﺼﻟ ﺍﻶﻧ

ETM-1.0 Explosive Disposal Mechanical Hand 4.5m Arm 20KG Clamping

اسم العلامة التجارية: TOPSKY

معلومات تفصيلية
أقصى سرعة خطية: ≥1.52m/s ، سرعة التحكم عن بعد. قطر التوجيه: ≤2400 مم
حبال الحبل: 3/4/5mm ديا*2M القوة المقدرة: 200 واط
مسافة الكبح: ≤0.11m طول الحفر: 0-400 مم قابل للتعديل
قوة: هيدروليكي التعديل العمودي: 0-30 سم
حجم البيكسل: : حوالي 160 ميكرون. وقت العمل: ≥2H
المسافة البعيدة: 5M نافذة التشتيت: 155 ملم × 330 ملم
الوزن البعيد: 1.4 كجم الاحماء الوقت: أقل من 12 دقيقة
طول الطية: 1.1m
إبراز:

explosive disposal mechanical hand,counter terrorism robotic arm 4.5m,20KG clamping bomb disposal tool

,

counter terrorism robotic arm 4.5m

,

20KG clamping bomb disposal tool

منتوج وصف

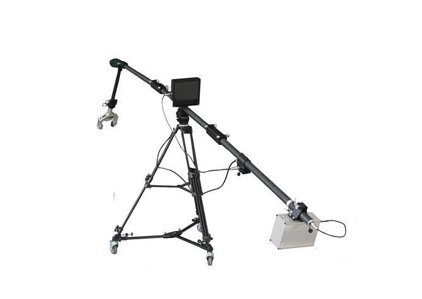

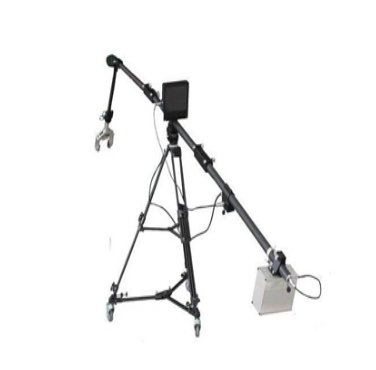

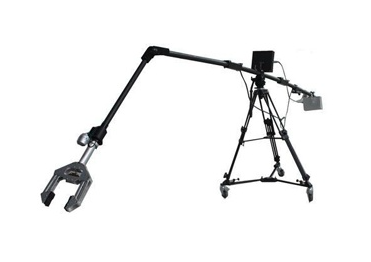

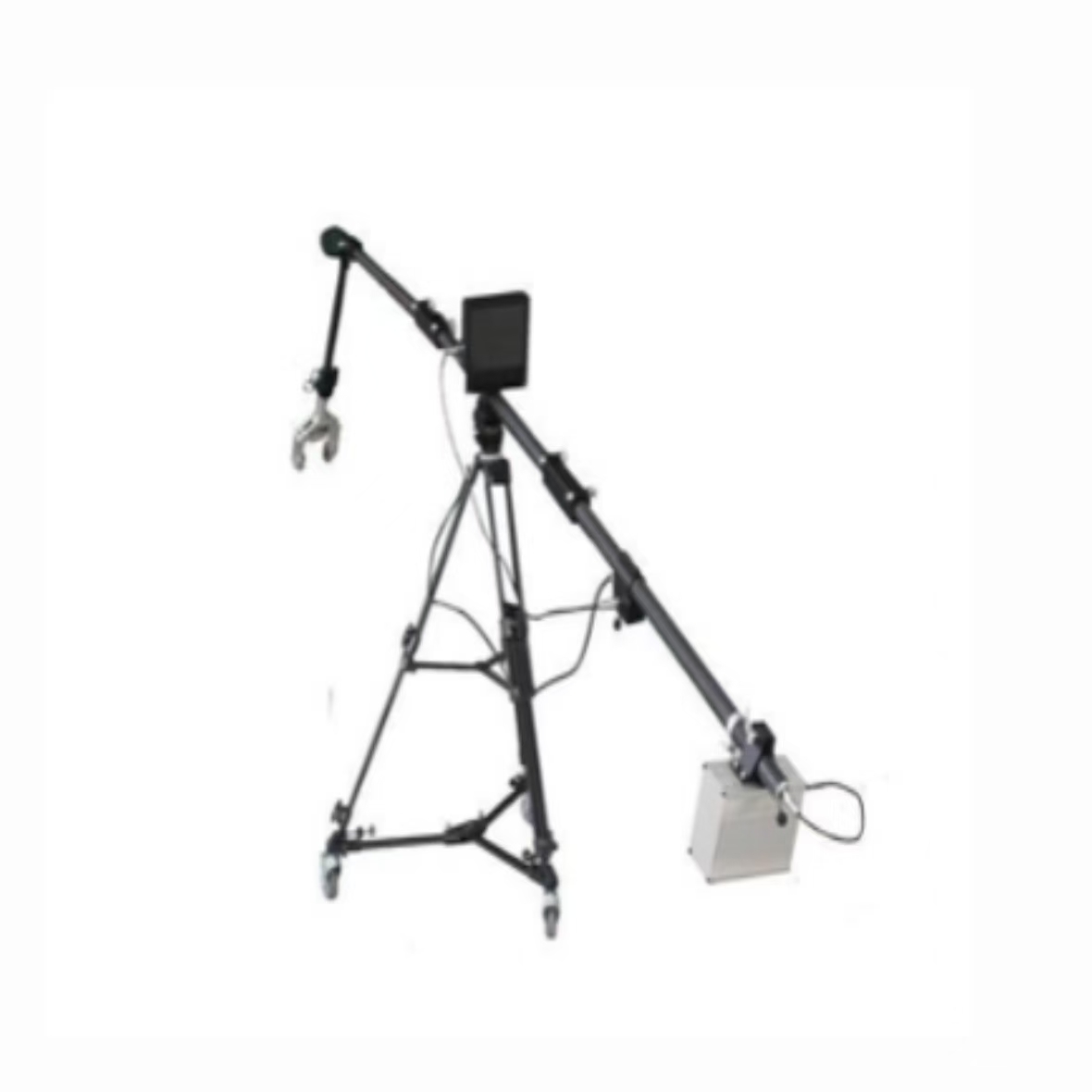

Electric Explosive Ordnance Disposal Mechanical Hand ETM-1.0
Overview
The explosive disposal mechanical arm is a specialized device designed for hazardous operations. It consists of a mechanical arm, wrist assembly, counterweights, battery box, and control system. The hollow arm rods provide structural integrity while maintaining lightweight operation. The system features intuitive controls with LED display for precise manipulation.
Key Applications
  • Large-scale fire rescue operations in petroleum and chemical facilities
  • Collapse-prone environments including tunnels and subway systems
  • Hazardous environments with potential explosive gas or liquid leaks
  • Low-visibility operations with thick smoke or toxic gas presence
  • High-risk scenarios requiring standoff distance from potential blast zones
Technical Specifications
Feature Specification
Clamping Force 20KG
Arm Length 4.5 meters
Control Method Electric operation with open/close functionality
Rotation Capability 360° front-end rotation with adjustable angle positioning
Support System Height-adjustable bracket with lockable swivel wheels
Imaging System 420-line high-resolution CCD camera with infrared night vision
Display 6-inch anti-glare LCD screen for outdoor operation
Battery Life 5 hours continuous operation
Additional Features Front-end bending capability for enhanced maneuverability

بطاقة:

معدات مكافحة الإرهاب

معدات المراقبة المضادة

explosive disposal mechanical hand,counter terrorism robotic arm 4.5m,20KG clamping bomb disposal tool
