Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range

مكان المنشأ: الصين اسم العلامة التجارية: topsky

معلومات تفصيلية

طول الموجة: 447nm ؛ 415nm ضمان: 5 سنوات
حجم البيكسل: : حوالي 160 ميكرون. ضوضاء: أقل من 30 ديسيبل
نطاق التركيز: 0.3m ~ التعديل العمودي: 0-30 سم
الحجم البعيد: 278*184*43mm حجم جهاز السمع: 210*100*100ملم
واقي الرقبة: 850m/s نموذج: آر إكس آر-M80D
نوع التنبيه: الصوت الخفيف والاهتزاز حجم الشاطئ: 73*16*50 سم
تكبير: 16 طابع أقصى سرعة خطية: ≥1.52m/s ، سرعة التحكم عن بعد.
نوع المنتج: معدات
إبراز:

4G Transmission Dust Measurement Instrument,0.001mg/m3 Resolution Dust Concentration Meter,0.001mg/m3 to 50mg/m3 Range Dust Monitor

,

0.001mg/m3 Resolution Dust Concentration Meter

,

0.001mg/m3 to 50mg/m3 Range Dust Monitor

منتوج وصف

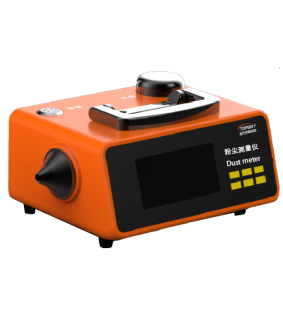

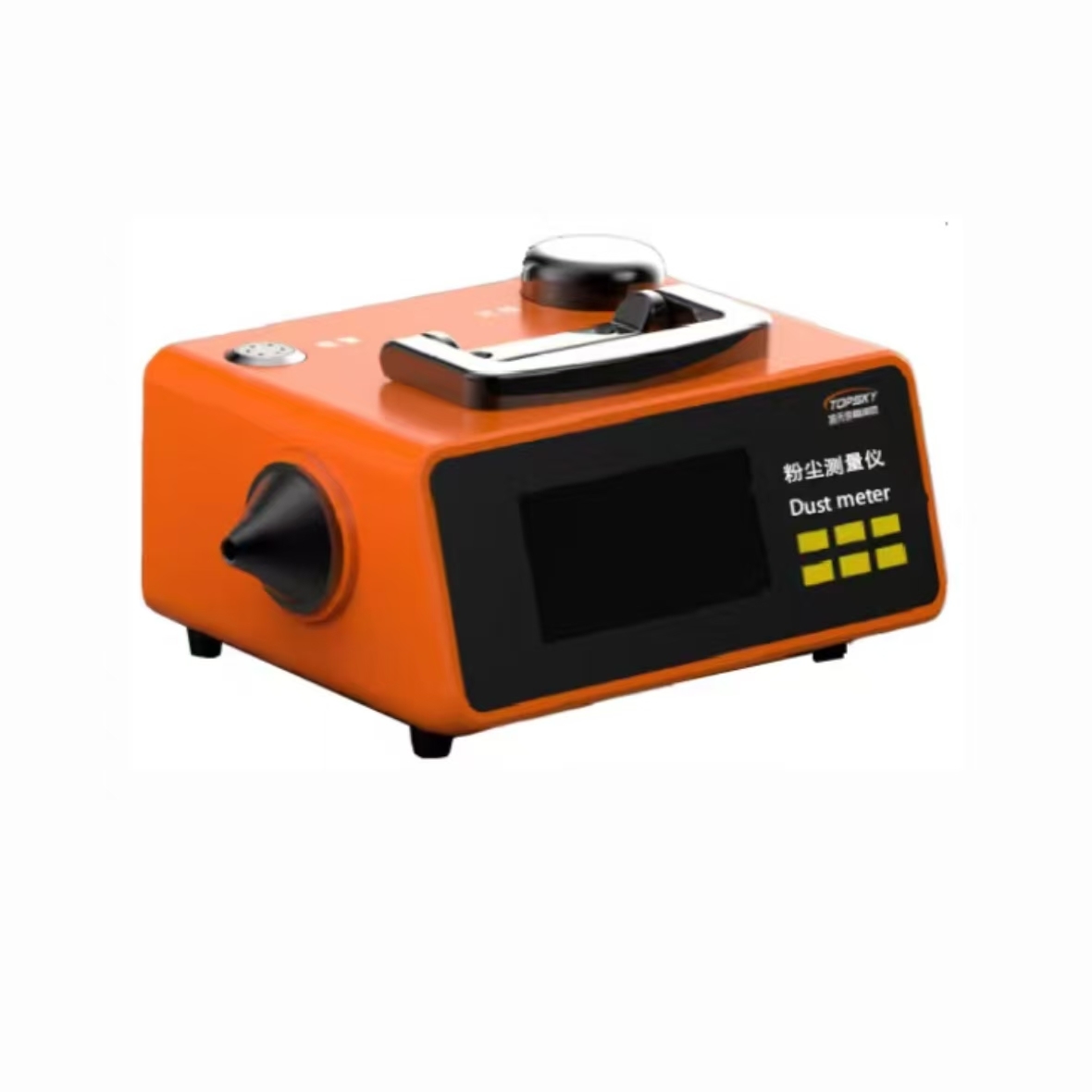

Dust Measurement Instrument
Product Overview
The CCZ500 dust measurement instrument is a portable, easy-to-use device that provides direct readings of dust concentration. Utilizing advanced light scattering technology with an infrared laser and imported photomultiplier tubes, it converts scattered light intensity into electrical signals to calculate mass concentration. This instrument features:
  • Fast, accurate measurements with high sensitivity
  • Stable performance with strong load capacity
  • Low susceptibility to optical path dust accumulation
  • Configurable alarm thresholds with audible/visual alerts
  • 4G data transmission for real-time monitoring
  • Compliant with MT163-1997, JJG846-2015, GB 20964-2007, and GB3836.4-2010 standards
Key Features
  • Lightweight: Compact and portable design for easy measurement
  • Efficient: Direct reading with one-button operation and 1-minute results
  • High Precision: Resolution of 0.001mg/m³
  • Automatic Alarm: Customizable threshold alerts
  • Data Processing: Scheduled sampling with TWA calculation
  • Networking: 4G transmission for real-time data visualization
  • Maintenance-free: No cleaning required for sensor module
  • Integrated: Durable, reliable design with attractive appearance
Technical Specifications
Dust Measurement Instrument
Measurement Range 0.001mg/m³ ~ 50mg/m³ (accuracy 0.001mg/m³)
0.01mg/m³ ~ 150mg/m³ (accuracy 0.01mg/m³)
Relative Error ≤ 10%
Measurement Time 1 minute (standard measurement time)
Alarm Function Built-in with customizable concentration settings
Data Storage Up to 9999 data sets
Calculations Automatic time-weighted average (TWA)
Network Function 4G transmission of dust concentration, temperature, humidity, and GPS data
Display 4.3-inch LCD screen
Working Time ≥ 6 hours
