Panoramic Slope Monitoring Radar with 120° Wide Coverage 0.1mm Deformation Accuracy and 8kg Lightweight for Emergency Rescue
Panoramic Slope Monitoring Radar with 120° Wide Coverage 0.1mm Deformation Accuracy and 8kg Lightweight for Emergency Rescue Panoramic Slope Monitoring Radar with 120° Wide Coverage 0.1mm Deformation Accuracy and 8kg Lightweight for Emergency Rescue Panoramic Slope Monitoring Radar with 120° Wide Coverage 0.1mm Deformation Accuracy and 8kg Lightweight for Emergency Rescue Panoramic Slope Monitoring Radar with 120° Wide Coverage 0.1mm Deformation Accuracy and 8kg Lightweight for Emergency Rescue Panoramic Slope Monitoring Radar with 120° Wide Coverage 0.1mm Deformation Accuracy and 8kg Lightweight for Emergency Rescue
ﺎﺘﺼﻟ ﺍﻶﻧ

Panoramic Slope Monitoring Radar with 120° Wide Coverage 0.1mm Deformation Accuracy and 8kg Lightweight for Emergency Rescue

مكان المنشأ: الصين اسم العلامة التجارية: topsky

معلومات تفصيلية
أقصى سرعة خطية: ≥1.52m/s ، سرعة التحكم عن بعد. وزن: 15.5 كجم
تتكشف الحجم: 1880mm درجة حرارة التخزين: -45 درجة مئوية ~ 65 درجة مئوية؛
وزن الجسم: 16 كجم رطوبة: 0-100 ٪
وضع التشغيل: : "التوازن الأرضي"/ "التمييز" زاوية: 120degree
الذاكرة: 8G SD حبال الحبل: 3/4/5mm ديا*2M
المنتج العمل و: 2.4 جيجا هرتز القوة المقدرة: 7.5 كيلو واط
قيمة الانحراف المستمر: ≤0.7٪ الحجم البعيد: 278*184*43mm
نطاق القياس: 0-550 مجم / 100 مل
إبراز:

120° Wide Coverage Slope Monitoring Radar,0.1mm Deformation Accuracy Panoramic Radar,8kg Lightweight Emergency Monitoring Radar

,

0.1mm Deformation Accuracy Panoramic Radar

,

8kg Lightweight Emergency Monitoring Radar

منتوج وصف

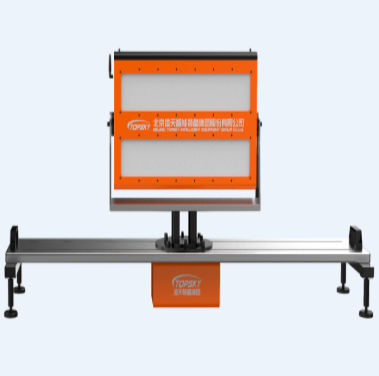

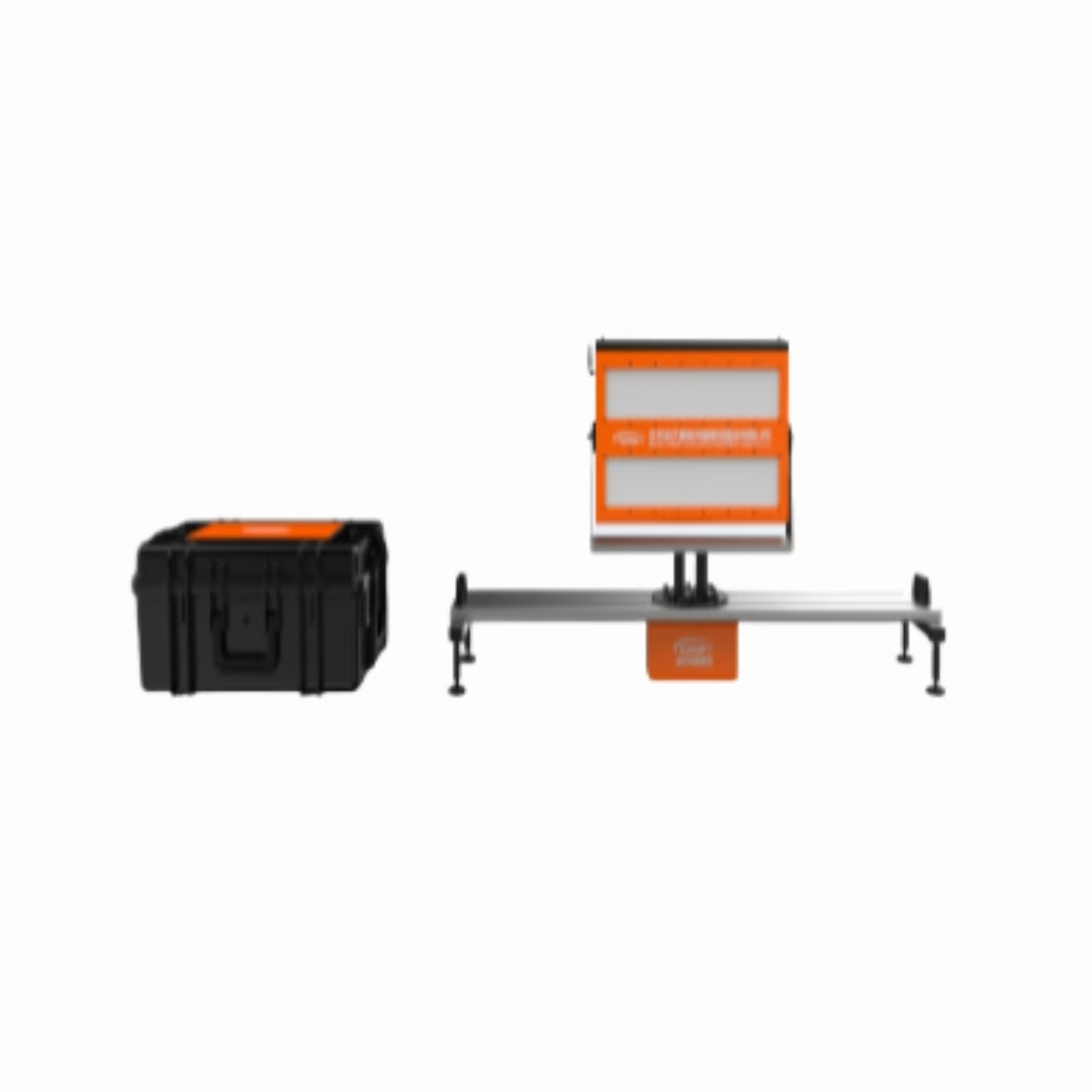

PSR-5000JH Emergency Ultra-Portable Slope Monitoring Radar
The PSR-5000JH emergency ultra-portable slope monitoring radar utilizes circular synthetic aperture radar technology with wideband frequency modulated continuous wave signals and phase difference interferometry. This advanced system provides 120° wide coverage with linear slide rail capability, delivering precise deformation measurement with exceptional all-weather and all-time environmental adaptability.
Specifically designed for rapid emergency response requirements, this lightweight, portable system features industry-leading volume, weight, and power consumption metrics. The compact 8kg device employs an edge computing architecture with integrated information processing, positioning, orientation, and wireless communication capabilities, enabling single-person deployment and rapid operational readiness at disaster sites.
Applications
Open Pit Mines
Geological Landslides & Collapses
Emergency Rescue Operations
Water Conservancy Dams
Urban Subsidence Monitoring
Subway Transportation
Large Bridges
High-Rise Buildings
Wind Turbine Towers
Railway Slopes
Key Functions & Capabilities
  • High-Precision Measurement: 0.1mm deformation accuracy with maximum data update rate of 30 seconds per cycle
  • All-Weather Operation: Microwave penetration capability enables 24/7 monitoring unaffected by rain, snow, fog, smoke, or dust
  • Comprehensive Coverage: 120° mobile rail-type full-circle environmental monitoring using circular imaging and continuous-wave radar technology
  • Edge Computing Architecture: Complete information processing within the device body with satellite compass and wireless router compatibility for rapid single-machine deployment
  • Flexible Positioning: Remote-controlled electric pitch angle adjustment for monitoring in high-altitude and mountainous terrain with significant elevation differences
  • Multi-Platform Monitoring: B/S architecture software supports real-time LAN/WiFi monitoring on laptops and remote 4G/5G mobile network cloud-based monitoring
  • Advanced Algorithms: Unique adaptive atmospheric disturbance compensation with less than 2mm daily error
  • Intelligent Alert System: Adaptive monitoring and early warning with manual/automatic monitoring point addition and 4-level configurable audible, SMS, and email alerts
  • Rugged Design: IP65 protection rating with operational capability down to -45°C, supporting continuous outdoor operation without additional protection
